Assembly Guide - 7 - Caster Assembly
2.7 Caster Assembly

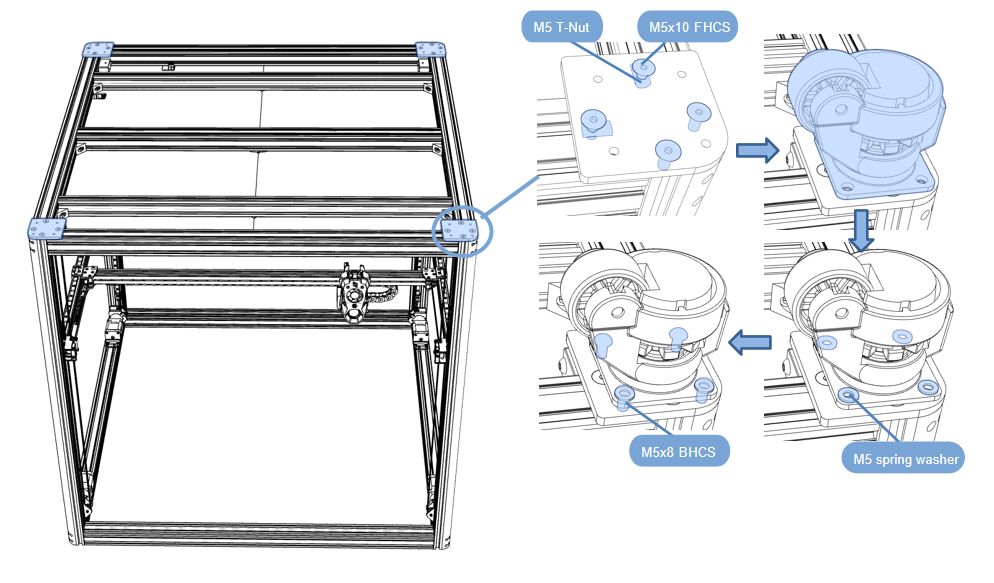

- Turn the machine over and install the caster fixing plate first；
- Then install the casters and tighten the screws；

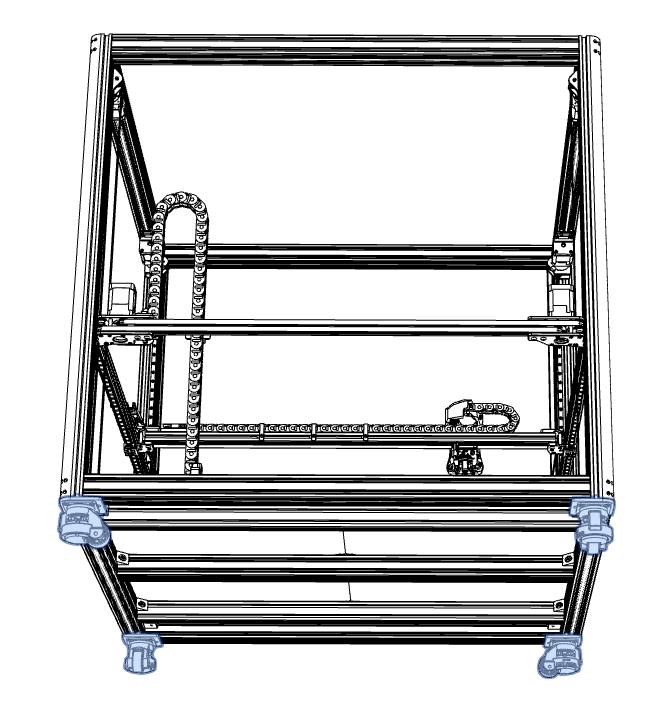

- Install 4 casters in sequence；

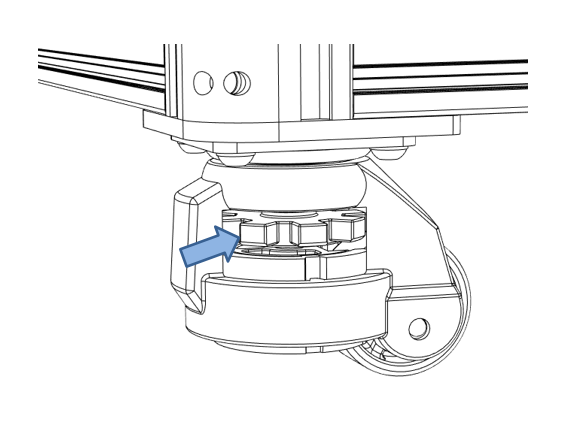

NOTE: The caster can be stationary or rolling by adjusting the screw.
This chapter is assembled
