2.7 Caster Assembly

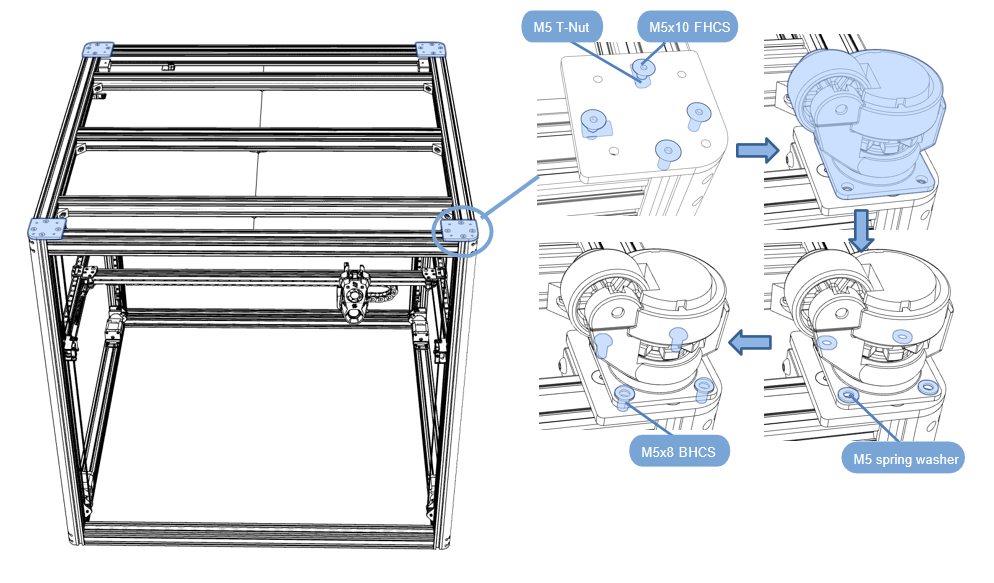

• Turn the machine over and install the caster fixing plate first；
• Then install the casters and tighten the screws；
• Install 4 casters in sequence；

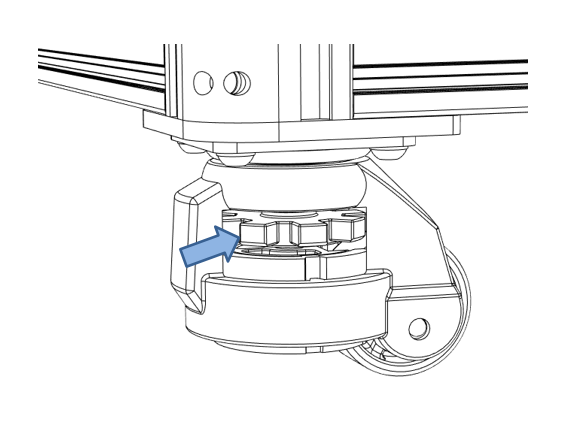

NOTE: The caster can be stationary or rolling by adjusting the screw.
