90° Heat Insert Adaptor

90° Angle Connector for Hot Melt Nut Press Head

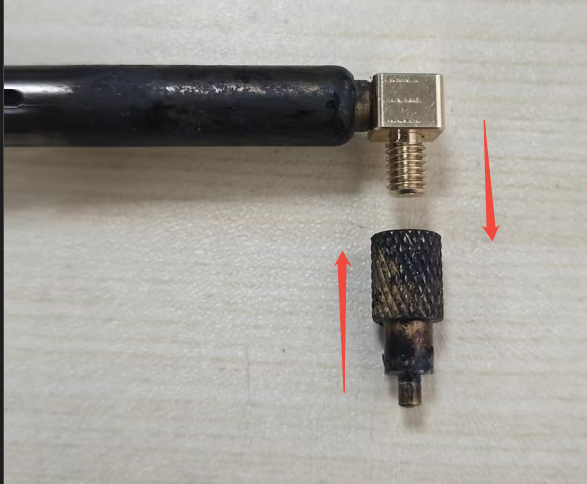

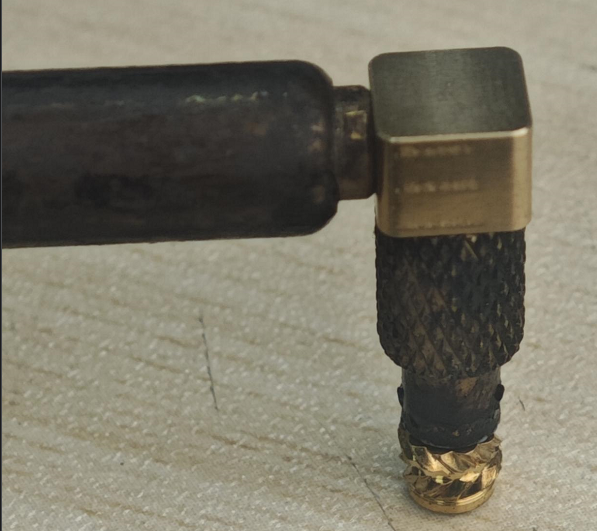

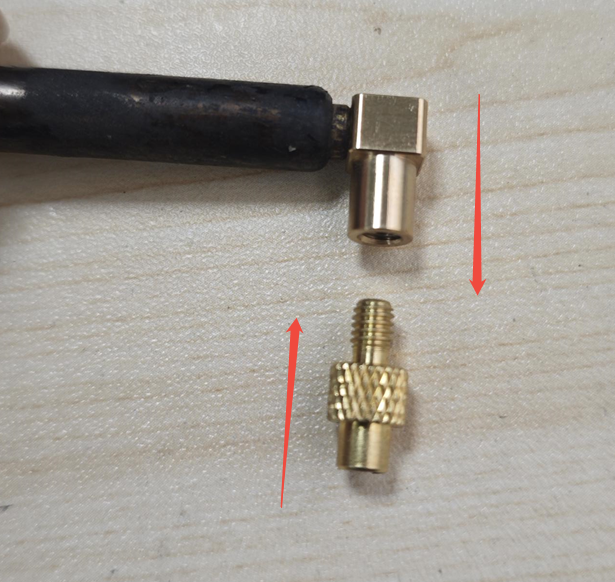

Assembly Instructions

introduction：

1.Right-angle connector for hot-melt nut indenter, main material: brass
2.Easy & Precise Installation using 90° Angle Connector
Improved accessibility to install "around the corner"
Quick & accurate installation of short and standard heat set inserts

Applicable machine：

Primarily compatible with hot-melt nut guns with M4 threaded gun heads.

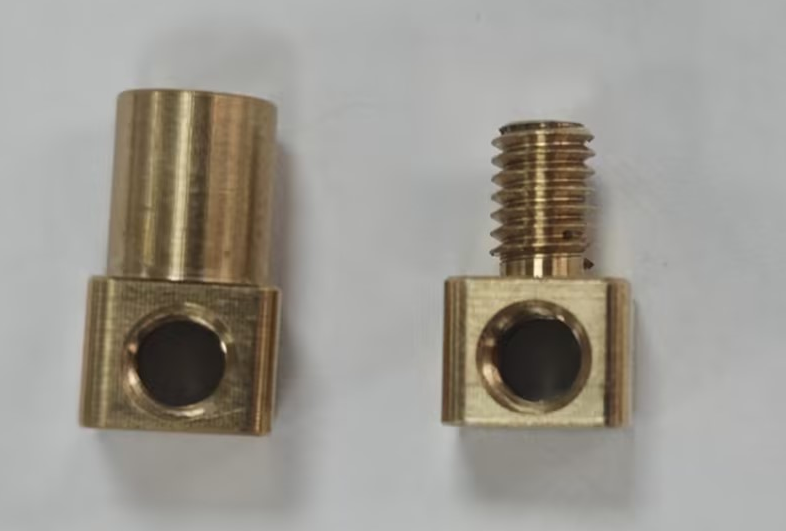

It is internally equipped with one M4 female thread adapter and one M4 male thread adapter.
