Known issue

Instructions for use of motor connection wire:

Z0 and Z3 motors need to use 3.5m connecting wires, Z1 motor uses 1.85m connecting wires, and the connecting wires of Z2 motor and B motor are swapped to solve the problem of short connecting wire of B motor. A Motor connection line remains unchanged

Update Notes

Column	Installation location	Download Link

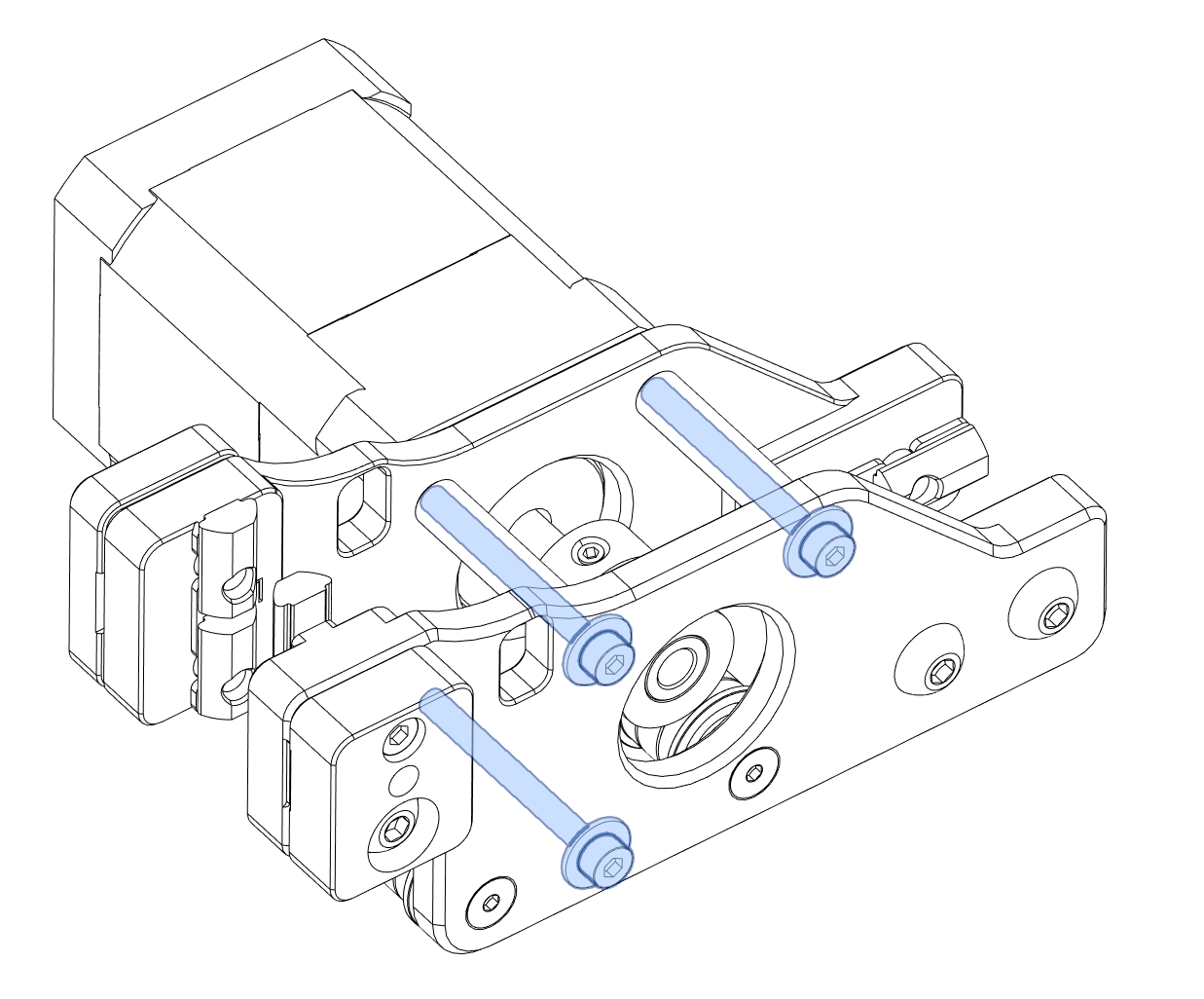

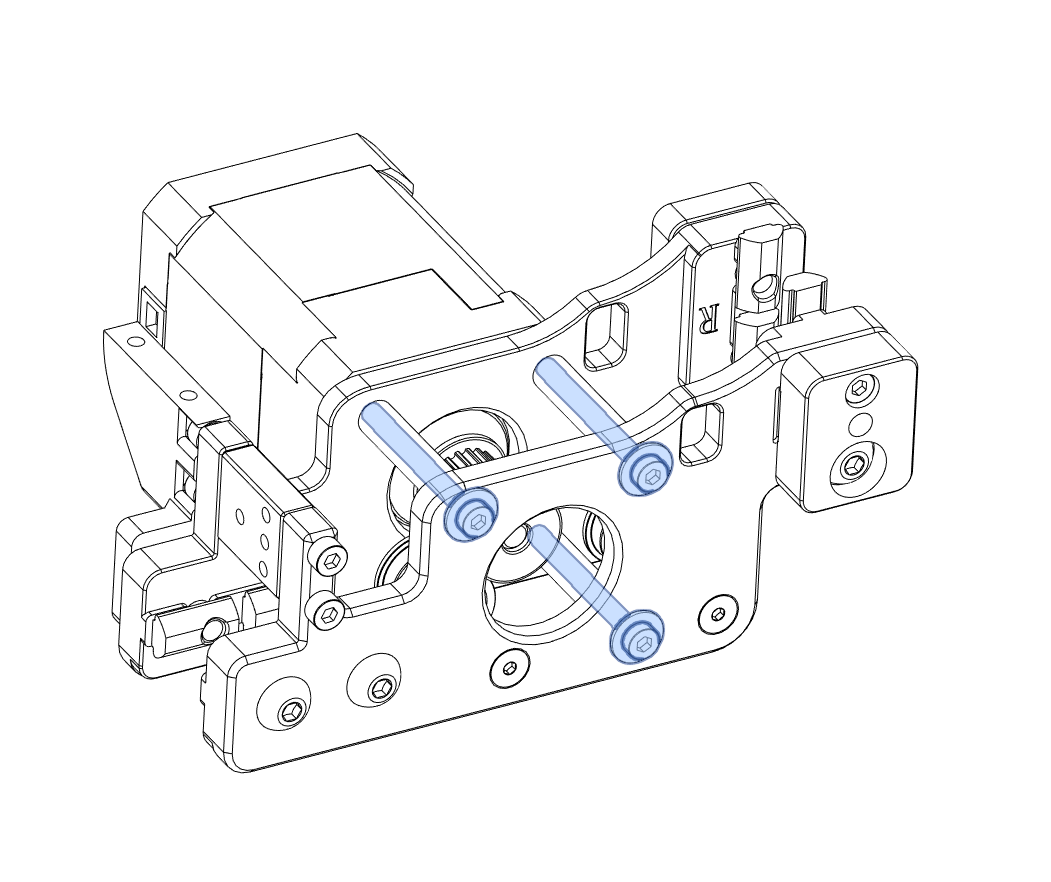

1	Manual page 26		The M3x40 motor mounting screws are a bit long, so you can use M3x38 instead, or add M3 washers and use M3x40 for installation.
2	Manual page 27		The M3x40 motor mounting screws are a bit long, so you can use M3x38 instead, or add M3 washers and use M3x40 for installation.

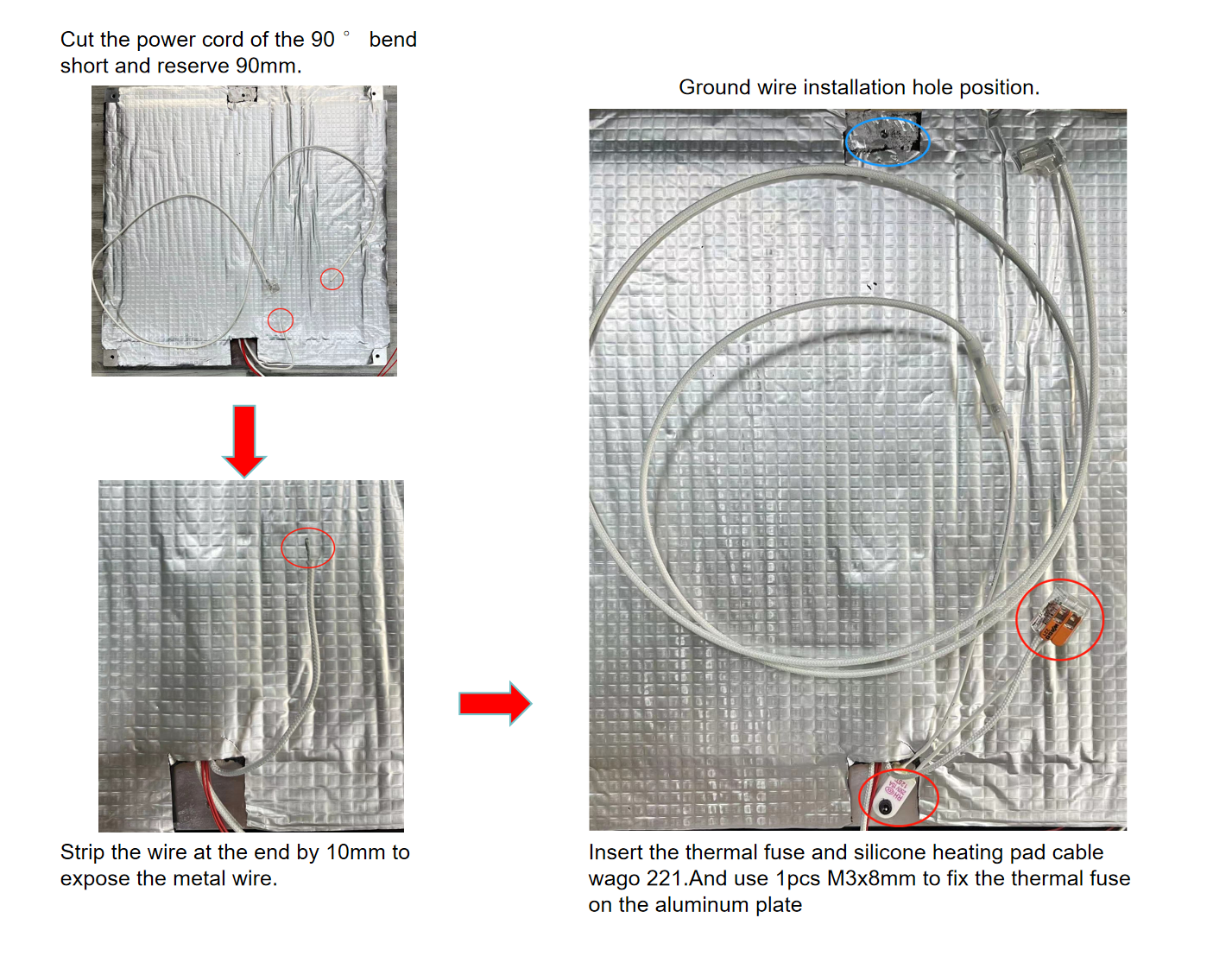

3	Manual page 43		Added 4 pcs hot bed thermal fuse
4	Manual page 48	here
5	Manual page 48	here
6	Manual page 49	here
7	Manual page 50	here
8	Manual page 52	here
9	Manual page 53	here

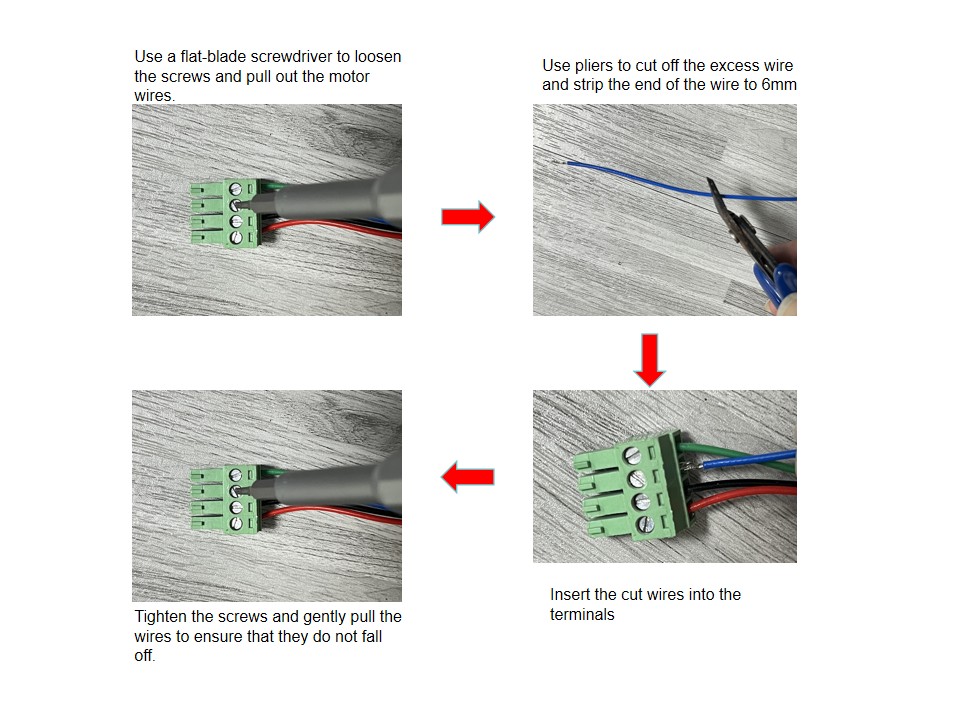

10			Motor line repair

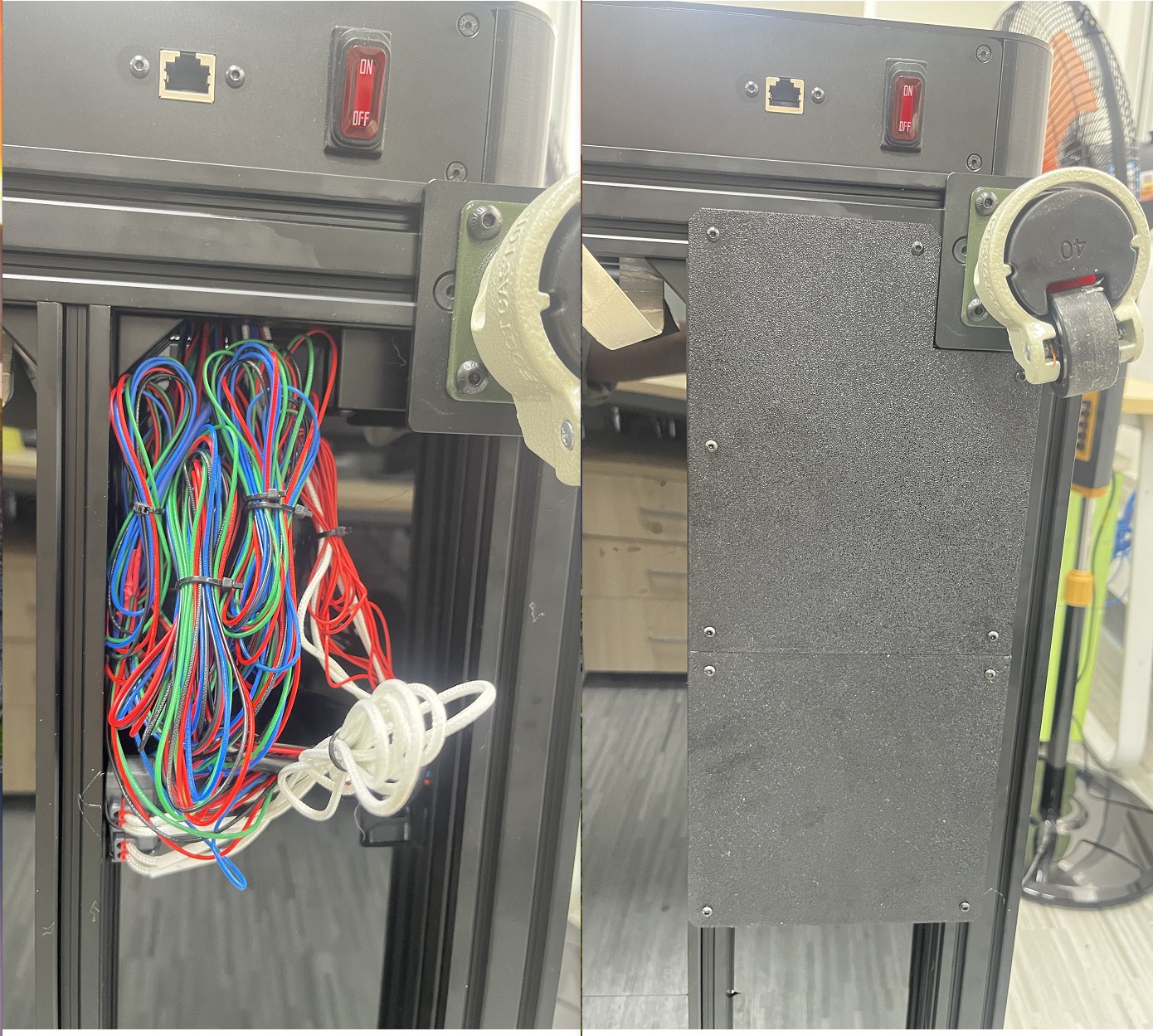

11	Manual page 59	here here	Add bottom cable cover

Please provide the order number to contact customer service to collect the supplementary accessory package.

Notice

Venture_XL CAD need to use WinRAR to decompress, otherwise the file cannot be opened.

Thanks to

Here I would like to express my gratitude and support to Esoterical、 RichardTHF and many others. Your suggestions have helped us a lot - you all have my most sincere thanks.

Updated on: 01/07/2026
