TMC2208
Product Introduction
TMC2208 is an ultra-quiet two-phase stepper motor drive chip, continuous drive current 1.4A, peak current 2A, voltage range 4.75V-36V, 256 subdivision. The flexible microPlyer interpolation unit provides up to 256 subdivisions, allowing perfect sinusoidal control even in systems with limited pulse frequencies; these are also designed because stealthChop2 ultra-quiet technology is widely used in 3D printing. Compatible with existing 3D printer electronics, eliminating the expensive costs of redesign. With a standard step/dir interface, it is easy to use. It can replace the original TMC2100, lower heat, especially for 3D printing market.
Features
- UART configuration interface (9600-500k Baud)
- Power tube built-in drive current 1.4A ,peak current 2A, voltage range 4.75V-36V
- Up to 256 native microsteps (without interpolation)
- CoolStep ™ current dynamic adjustment technology, can save 70% of the energy
- stealthChop2 - faster motor acceleration/deceleration than stealthChop
- dcStep ™, stallGuard2 ™ stall detection technology
- Automatic stealthChop and spreadCycle switchover depending on velocity
- Hardware compatible with StepStick and Pololu A4988 Stepper Driver
- Components on bottom PCB side for better heat emission
- Automatic standby current reduction
- SteaClthhop mute technology
- spreadCycle - highly dynamic motor control chopper

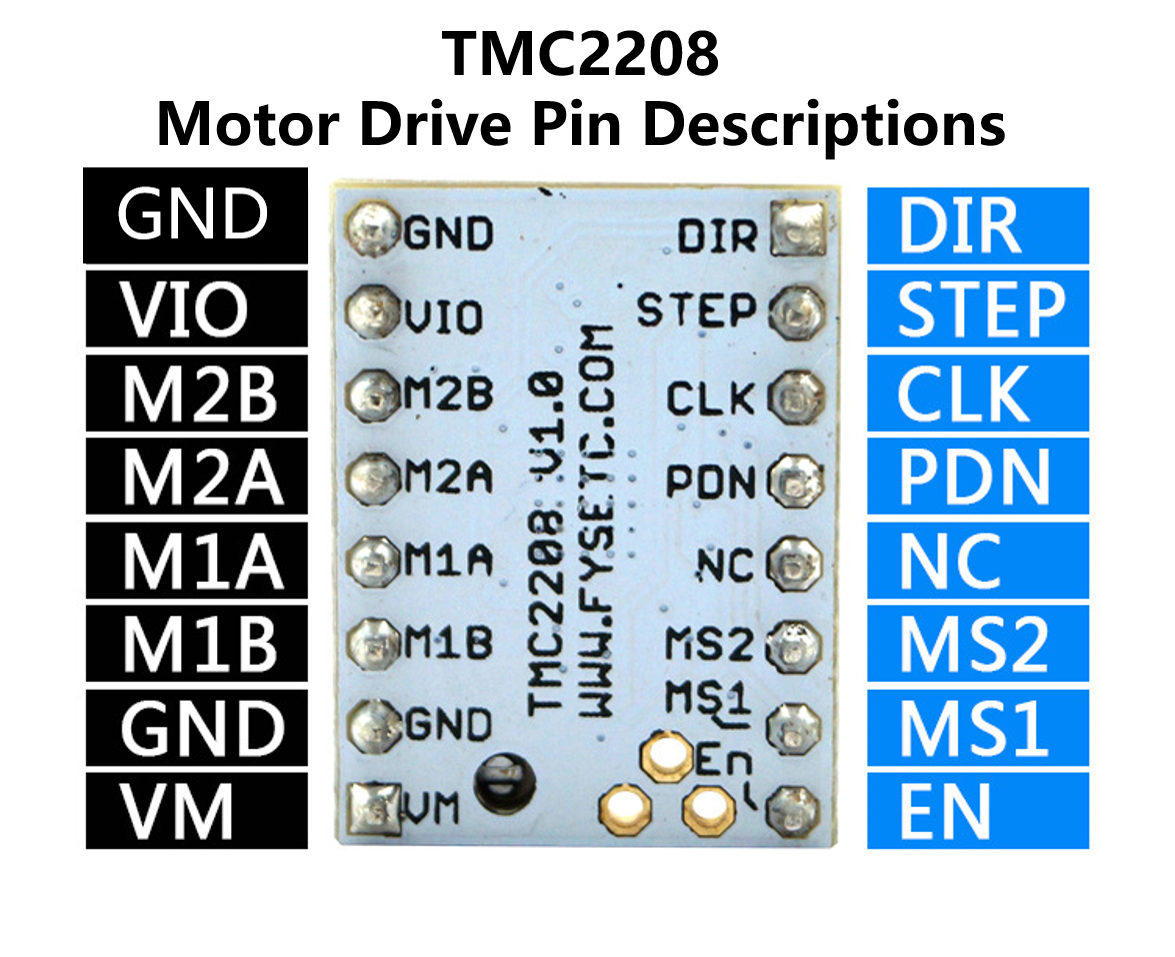

Technical Specifications
Model | TMC2208 |
|---|---|
Interface | Step/Dir |
Configuration | CFG Pins or UART |
Native Microsteps | up to 1/256 |
microPlyer Microsteps | 1/256 |
Logic Voltage (VIO) | 3-5V |
Motor Voltage (VM) | 5.5-36V |
Motor Phase Current max | 1.2A RMS, 2.0A Peak |
Internal V- Regulator | enabled |
RDSon | Voltage on Vref pin |
Irms -> RMS (Root Mean Square) current per phase (Irms = Imax / 1.41) | |
Imax -> Maximum current per phase (Imax = Irms * 1.41) |

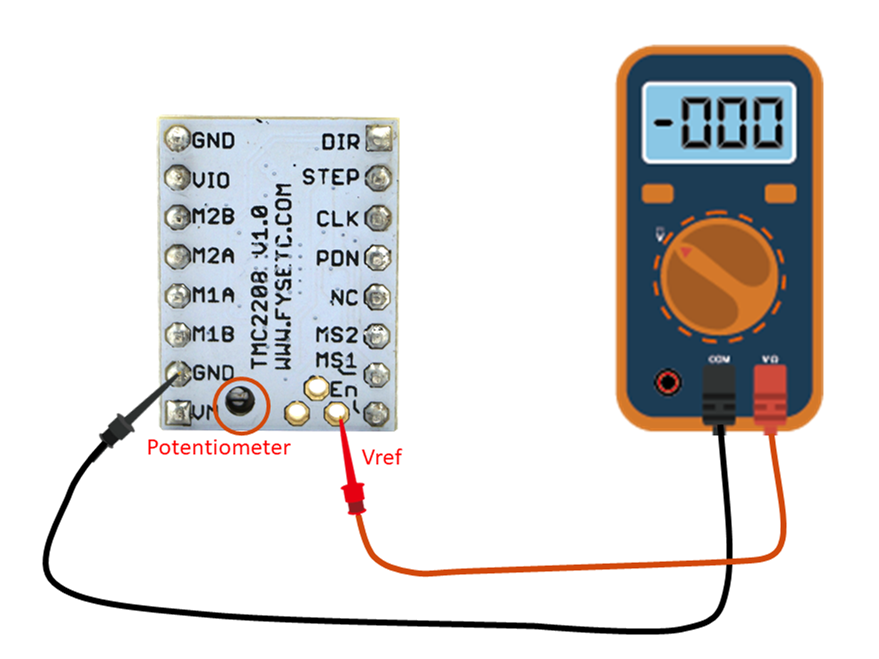

!!!Note
1. Vref measures Gnd and the voltage at the middle of the potentiometer.
2. Do not connect the motor when measuring the voltage, otherwise it is easy to burn the driver.
3. Power should be connected when measuring voltage, do not just connect USB power supply.
4.
Please pay special attention to directions!
Calculator
RMS Current (A):
Reference Voltage (V):

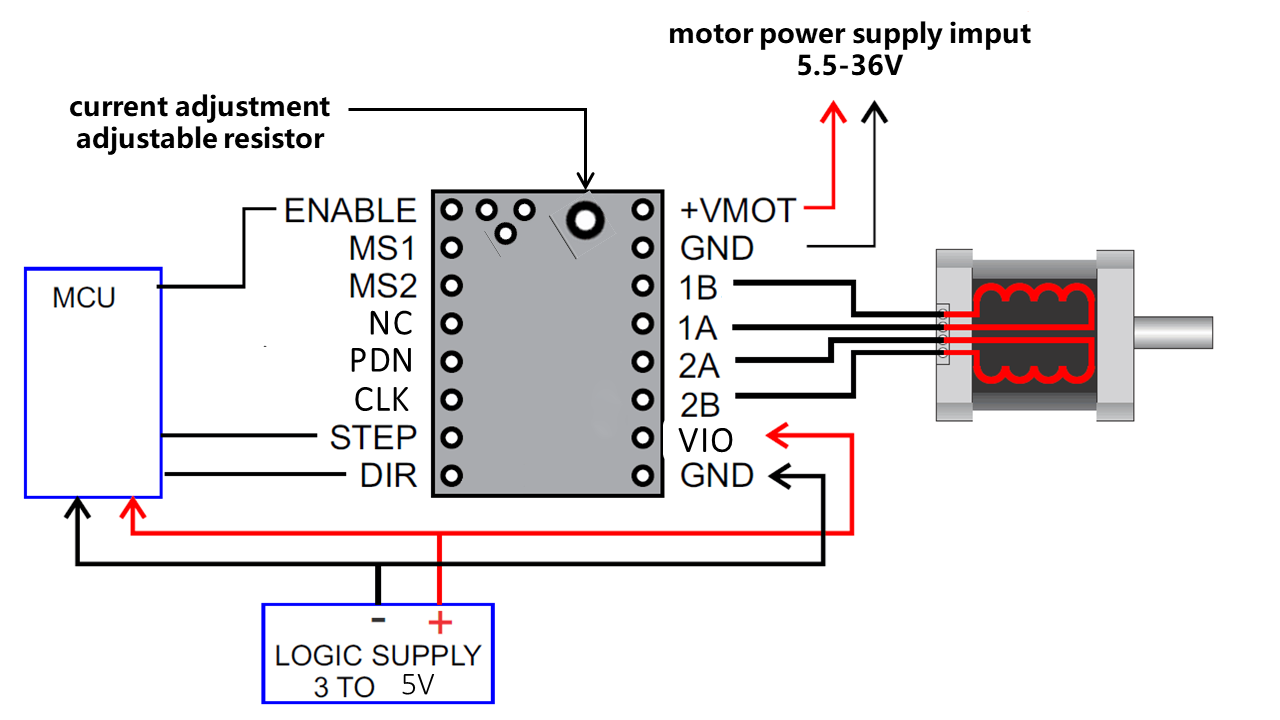

Micro-stepping
MS2(-) | MS1(-) | Steps(-) | Interpolation(-) | Mode(-) |
|---|---|---|---|---|
GND | VIO | 1⁄2 | 1⁄256 | stealthChop2 |
VIO | GND | 1⁄4 | 1⁄256 | stealthChop2 |
GND | GND | 1⁄8 | 1⁄256 | stealthChop2 |
VIO | VIO | 1⁄16 | 1⁄256 | stealthChop2 |
Setting Method
With the TMC2208 Configurator you can change the settings and program the OTP (One-Time-Programmable) memory of a Trinamic TMC2208 via the UART interface.
To run the program:
- Install ScriptCommunicator
- Download TMC2208.scez
- Start the TMC2208.scez file with the ScriptCommunicator: ScriptCommunicator TMC2208.scez
- Choose the right serial port and click Connect
- Modifications in the Configurator are directly transmitted
!!!Tip
The OTP bits can be programmed only one time.
If you enable spreadCycle then TOFF cannot be 0 (null).
Hardware Connection

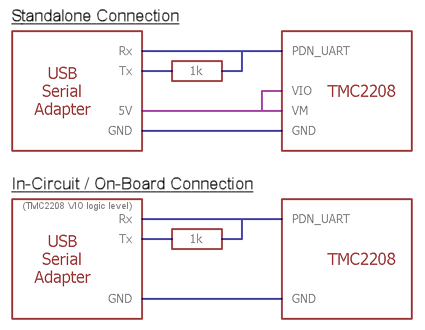

You can use every RS232 serial adapter with 0-5V logic levels (e.g. FTDI-Breakout) and the SilentStepStick Tester/Programmer can be used as connection adapter.
!!!Tip
The jumper next to the PDN_UART pin has to be closed on the TMC2208 SilentStepStick to enable the pin access via the pin header.
Versions Difference
Versions | difference |
|---|---|
V1.0 | The default is standalone mode，If you need UART mode，you must config by yourself. |
V1.2 | UART mode, it’s used for F6. |
